Ultrasonic Thickness Gage27MG

Product Details


Ultrasonic Thickness Gage

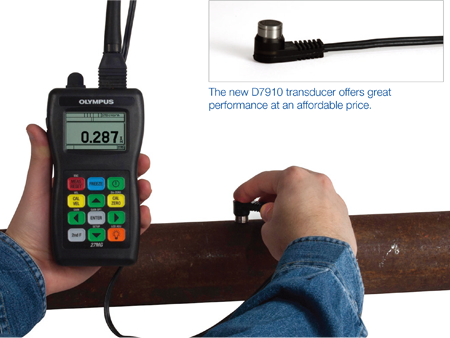

• Dual Element Corrosion Gaging

• Large Backlit LCD Display

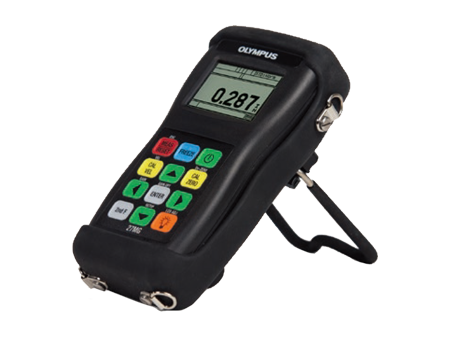

• Rugged Handheld Design


Measurements Dual element transducer measurement mode Time interval from a precision delay after the excitation pulse to the first echo
Thickness range 0.50 mm to 635 mm (0.020 in. to 25.0 in.) depending on material, transducer, surface conditions, temperature
Material velocity range 0.508 mm/μs to 18.699 mm/μs (0.020 in./μs to 0.7362 in./μs)
Resolution (selectable) Low: 0.1 mm (0.01 in.)
Standard: 0.01 mm (0.001 in.)
Transducer frequency range 2.25 MHz to 10 MHz (–3 dB)
General Operating temperature range -10 °C to 50 °C (14 °F to 122 °F)
Keypad Sealed, color-coded keypad with tactile and audible feedback
Case Impact-resistant and water-resistant, gasketed case with sealed connectors. Designed for IP65.
Dimensions (W x H x D) 84.0 mm x 152.4 mm x 39.6 mm (3.31 in. x 6.0 in. x 1.56 in.)
Weight 340 g (12 oz)
Power Supply 3 AA alkaline batteries
Battery life operating time 150 h of typical battery life, 30 h continuous use with backlight
Explosive Atmosphere Safe operation as defined by Class I, Division 2, Group D, as found in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL-STD-810F 511.4 Procedure I
Standards Designed for EN15317
Alarm mode Programmable Hi/Low set points with audible and visual indicators
Display Display Hold/Blank mode Holds or blanks the display after measurements
Backlight Electroluminescent backlight, Selectable as On or Auto On
Receiver bandwidth 1 MHz to 18 MHz (–3 dB)
Metric/English mode Metric or English units
Display languages English, French, German, Spanish, Italian,Portuguese, Russian, Polish, and Swedish
