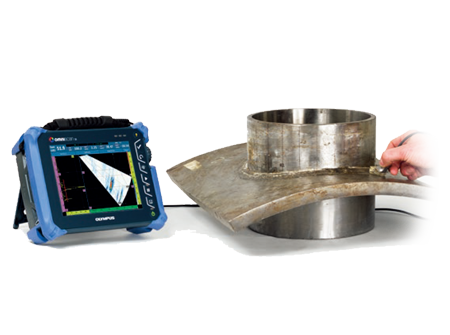

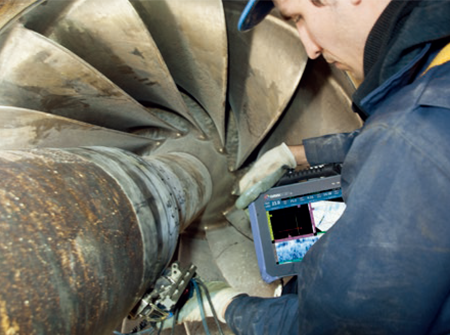

Ultrasonic Flaw Detector-OmniScan SX


Smaller, Lighter…Still an OmniScan

• Cost-efficient, single-group

• Two-axis encoding and data archiving capacity

• Conventional UT, TOFD, and 16:64PR PA capabilities

• 8.4 in. (21.3 cm) touch screen with OmniScan interface

• Compact, lightweight design


Housing Overall dimensions (W x H x D) 267 mm × 208 mm × 94 mm (10.5 in. × 8.2 in. × 3.7 in.)
Weight 3.4 kg (7.5 lb) with battery
Data Storage Storage devices SDHC card* or most standard USB storage devices.
*Lexar® brand memory cards are recommended for optimized results.
Data file size 300 MB
I/O Ports USB ports 2 USB ports, compliant with USB 2.0 specifications
Audio alarm Yes
Video output Video out (SVGA)
I/O Lines Encoder 2-axis encoder line (quadrature, up, down, or clock/direction)
Digital input 4 digital TTL inputs, 5 V
Digital output 3 digital outputs TTL, 5 V, 15 mA maximum per output
Acquisition on/off switch Yes, through configuration of a digital input
Power output line 5 V, 500 mA power output line (short-circuit protected)
Pace input 5 V TTL pace input
Display Display size 21.3 cm (8.4 in.) (diagonal)
Resolution 800 pixels x 600 pixels
Brightness 600 cd/m2
Viewing angles Horizontal: –80° to 80° Vertical: –60° to 80°
Number of colors 16 million
Power Supply Battery type Smart Li-ion battery
Number of batteries 1
Battery life Minimum 6 hours under normal operating conditions
Environmental Specifications Operating temperature range -10 °C to 45 °C
(14 ºF to 113 ºF)
Storage temperature range –20 °C to 60 °C (–4 ºF to 140 ºF) with battery
–20 °C to 70 °C (–4 ºF to 158 ºF) without battery
Relative humidity Max. 70% RH at 45°C noncondensing
Ingress protection rating Designed to meet requirements of IP66
Shockproof rating Drop-tested according to MIL-STD-810G 516.6
Ultrasound Specifications (applies to OMNISX-1664PR) Connectors 1 Phased Array connector: Olympus PA connector
2 UT connectors: LEMO 00
Number of focal laws 256
Probe recognition Automatic probe recognition
Pulser/Receiver Aperture 16 elements
Number of elements 64 elements
Pulser PA Channels UT Channel
Voltage 40 V, 80 V, and 115 V 95 V, 175 V, and 340 V
Pulse width Adjustable from 30 ns to 500 ns; resolution of 2.5 ns Adjustable from 30 ns to 1,000 ns; resolution of 2.5 ns
Pulse shape Negative square wave Negative square wave
Output impedance 35 Ω (pulse-echo mode);
30 Ω (pitch- catch mode)
<30 Ω
Receiver PA Channels UT Channel
Gain 0 dB to 80 dB, maximum input signal 550 mVp-p (full-screen height) 0 dB to 120 dB maximum input signal 34.5 Vp-p (full-screen height)
Input impedance 60 Ω (pulse-echo mode);
150 Ω (pitch- catch mode)
60 Ω (pulse-echo mode);
50 Ω (pulse-receive mode)
System bandwidth 0.6 MHz to 18 MHz (–3 dB) 0.25 MHz to 28 MHz (–3 dB)
Beamforming Scan type Sectorial or linear
Group quantity 1
Data Acquisition PA Channels UT Channel
Digitizing frequency 100 MHz 100 MHz
Maximum pulsing rate Up to 6 kHz (C-scan)
Data Processing PA Channels UT Channel
Number of data points Up to 8,192
Real-time averaging PA: 2, 4, 8, 16 UT: 2, 4, 8, 16, 32, 64
Rectifier RF, full wave, half wave +, half wave –
Filtering 3 low-pass, 3 band-pass, and 5 high-pass filters 3 low-pass, 6 band-pass, and 3 high-pass filters (8 low-pass filters when configured in TOFD)
Video filtering Smoothing (adjusted to probe frequency range)
Data Visualization A-scan refresh rate A-scan: 60 Hz; S-scan: 60 Hz
Data Synchronization On internal clock 1 Hz to 6 kHz
On encoder On 2 axes: from 1 to 65,536 steps
Programmable Time-Corrected Gain (TCG) Number of points 16: One TCG (time-corrected gain) curve per focal law
Maximum slope 40 dB/10 ns
Alarms Number of alarms 3
Conditions Any logical combination of gates

The OmniScan SX meets or exceeds the minimum instrumentation and software requirements as specified in ASME, AWS, API, and EN codes.
