Ultrasonic Thickness Gage26MG

Product Details

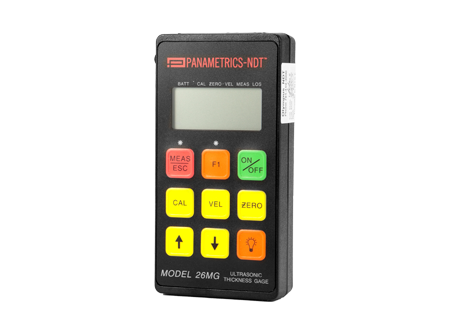

26 MG

  • 초음파를 이용하여 재질의 두께 측정, 내부 결함, 부식 유무 및 라미네이션의 존재를 측정할 수 있는 휴대용 초음파 장비
  • 현장 사용에 적합한 가벼운 포켓 사이즈
  • 고온측정 가능
  • 위험지역 측정인증장비(MIL-STD-810E, method 511.3, procedure 1)


Panametrics 26MG Specifications*

Measurement Mode: Pulse echo with dual element transducers
ThicknessMeasurement Range: 0.020 to 19.999″ (0.50 to 508 mm)
Note: Thickness range depends on material, transducer type, surface condition, and temperature.
MaterialVelocity Calibration Range: 0.0300-0.5511 in/µsec
(0.762- 13.999 mm/µsec)
Thickness Display Resolution:
LOW: 0.01″ 0.1 mm
STANDARD: 0.001″ 0.01 mm
Measurement Rates: Standard Rate: 4 per second
Fast Rate: 20 per second
Fast Min Mode: Rapid capture and recall of minimum thickness at Fast Rate of 20 per second.
Freeze Mode: Freezes display to instantly capture critical thickness. Minimizes transducer couplant lift-off error and facilitates high temperature measurements.
Automatic Probe Recognition: Automatically recognizes the listed Panametrics-NDT transducer types. Adjusts internal parameters and corrects V-path error.
Zero Compensation Mode: Compensates for transducer temperature and zero offset.
Display: 4 1/2 digit (19999 counts) Liquid Crystal Display (LCD), 0.4″ (10.2 mm) numerals
Display Hold/Blank Mode: Display holds or blanks after measurement.
Electroluminescent Display Back Lighting: Selectable as “On” or “Auto On”
Receiver Bandwidth: 1-15 MHz (-3dB)
Metric/English Mode: Metric or English units
Battery: 2 AA Alkaline Batteries
Operating Time: 250 hours typical battery life; 30 hours continuous with backlight on
Low Battery Indicator: Continuously indicates battery status
BatterySaver: Auto Power Off/Continuous On
Case/Keypad: Splash proof, impact-resistant Lexan® case. Sealed, color-coded keypad with tactile and audible feedback.
Operating Temperature Range:-10° C to +50° C, 14° F to 122° F
Size: 2.55″ W x 5.05″ L x 1.14″ H(64.8 mm x 128.7 mm x 29 mm)
Weight: 8.5 oz. (0.24 kg)
Hazardous Area Operations: As defined by MIL-STD-810E, method 511.3, procedure 1.
*All specifications subject to change without notice.
